PRE-CLEANING SOLUTIONS
Air screen pre-cleaners are used to remove large impurities from incoming seed and grain to relieve the following machines and ready the product for storage. Oliver Westrup offers a comprehensive range of air screen pre-cleaning equipment for different purposes, among these for cleaning, sizing, precleaning, market grade cleaning and food grade cleaning. Capacities range from low capacity machines suitable for grain storage facilities to high capacity machines suitable for high intake plants.
Pre-cleaning for a better result

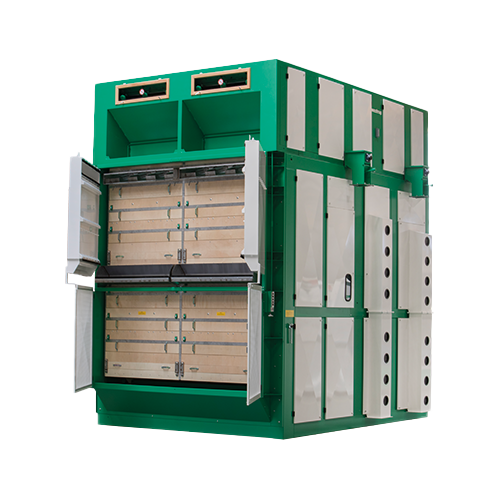

The CC high capacity modular cleaner is a very versatile cleaner applicable for many high capacity cleaning purposes. It excels at precision cleaning of a large variety of seed and grain as well at pre-cleaning, fine cleaning, and sizing when very high efficiency standards are required. Capacity 125-380 t/h.
Models: CC-1250 | CC -1500 | CC-1750 | CC-2000 | CC-2500

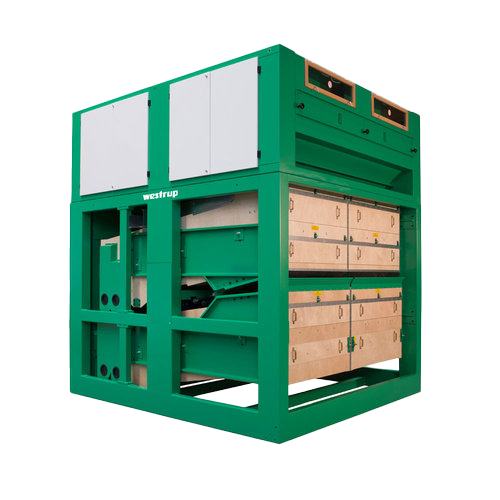

The SP high capacity modular cleaner is a very versatile cleaner applicable for many high capacity cleaning purposes. The machine excels at malting barley cleaning and sizing, pre-cleaning, market grade cleaning, and food grade cleaning. Capacity 100-250 t/h.
Models: SP-1000 | SP–1250 | SP-1500 | SP-1750 | SP-2000 | SP-2500

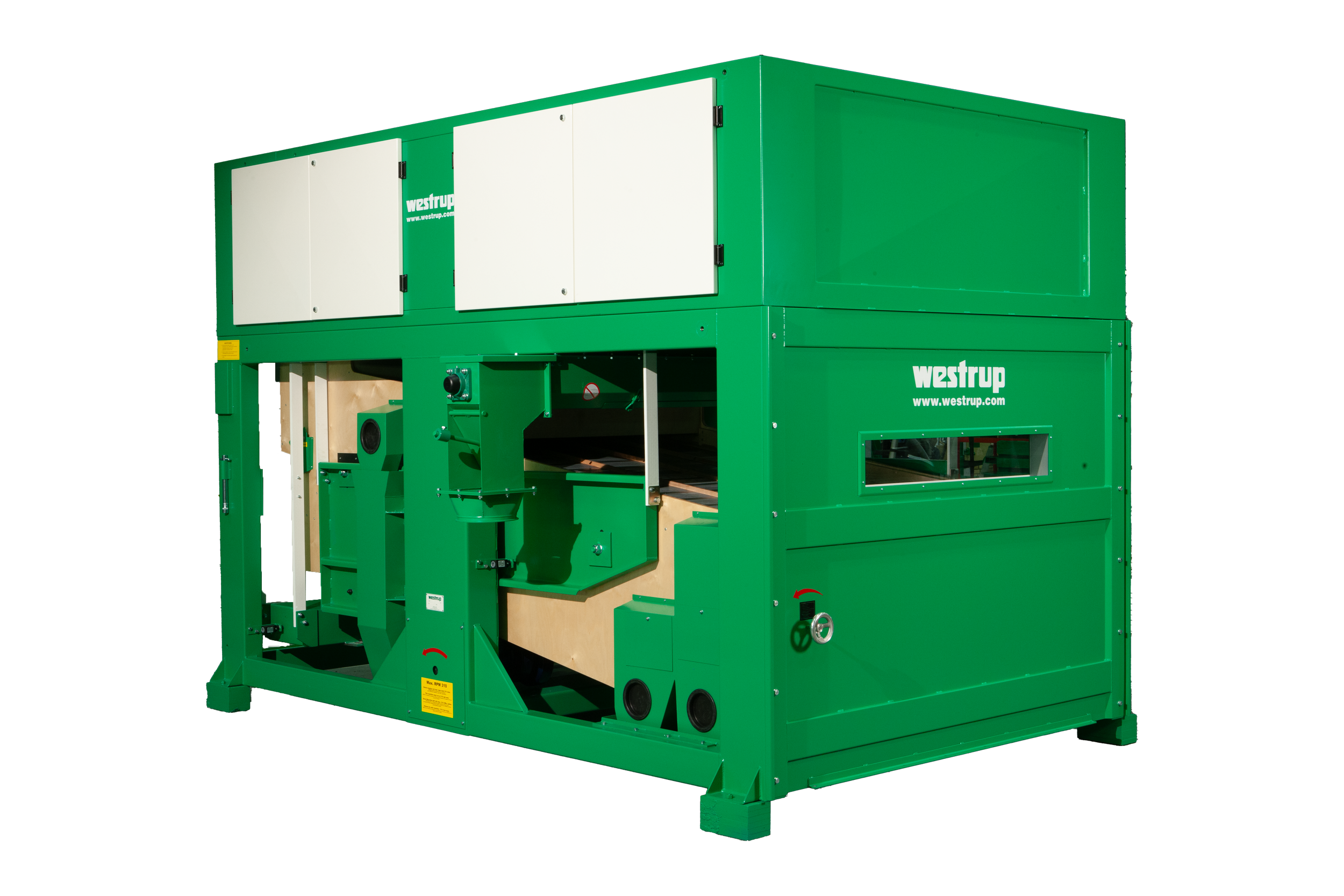

The SD mid range modular cleaner is a very versatile cleaner applicable for many cleaning purposes. The machine is excellent for pre-cleaning purposes at intake plants and also suitable for dressing of malting barley. Capacity 50-150 t/h.
Models: SD-1000 | SD–1250 | SD-1500 | SD-1750 | SD-2000
The SI pre-cleaner is first and foremost designed to master jobs at intake plants. The machine is ideally suited to dress malting barley and milling grain to the highest quality commercial sample at a reduced throughput. Capacity 50-75 t/h.
Models: SI-50 | SI-60 | SI-70
The SAC silo separator is first and foremost designed to master pre-cleaning jobs at modern intake plants. The machine is ideally suited to dress malting barley and milling grain to the highest quality commercial sample at a reduced throughput. Capacity 30-50 t/h.
Models: SAC-1000 | SAC-1250 | SAC-1500
The SAB silo separator is first and foremost designed to master pre-cleaning jobs at modern intake plants. The machine is suited to dress malting barley and milling grain to the highest quality commercial sample at a reduced throughput. Capacity 25-45 t/h.
Models: SAB-1000 | SAB-1250 | SAB-1500
The AS pre-cleaner is designed to be used mainly in grain store applications where it is desirable to pre-clean the incoming grain. Capacity 25-38 t/h.
Models: AS-1000 | AS-1500
PC Pre-cleaner
The PC screen cleaner is designed for pre- or fine cleaning, grading, and calibration of a large variety of products. Capacity 12-30 t/h.
Models: PC-600 | PC-1000 | PC-1250 | PC-1500
Pre-cleaning
-
Air screen pre-cleaners are used to remove large and small impurities from incoming seed and grain to relieve the following machines and ready the product for storage.
We offer a comprehensive range of air screen pre-cleaning equipment for different purposes, among these for cleaning, sizing, precleaning, market grade cleaning and food grade cleaning. Capacities range from low-capacity machines suitable for grain storage facilities to high-capacity machines suitable for high intake plants.
-
Pre-cleaning is the first process after harvesting and is required to remove all unwanted product from the prime product. By removing the large and small impurities and dust, you prolong the storage time and reduce the risk of disease in the product. You also prevent blocking of silo outlets and further equipment in the process.
-
All the Air screen pre-cleaners work with a combination of screens and airflow.
Firstly, a pre-suction which catches light impurities and dust.
Secondly, a combination of screens, depending on capacity, separates large and small impurities. Screen sizes can be changed depending on product.
Lastly, a heavy after suction of the product catches even more light product with the same size as the main product.
