FINE CLEANING SOLUTIONS
Fine cleaning for high purity
Air screen fine cleaners remove light impurities by using a precise air stream to lift light foreign material away from the prime product and sieveboats with scalping and sand screens to remove small and large impurities. Oliver Westrup offers many versatile air screen fine cleaning machines suitable for many purposes, amongst these precision cleaning, fine cleaning and sizing.
The CC high capacity modular cleaner is a very versatile seed and grain cleaner performing at high capacities. Capacity 12-48 t/h.
Models: CC-1250 | CC -1500 | CC-1750 | CC-2000 | CC-2500
The FP high capacity modular cleaner is a very versatile cleaner performing at high capacities. Capacity 6-36 t/h.
Models: FP-1250 | FP -1500 | FP-1750 | FP-2000 | FP-2500

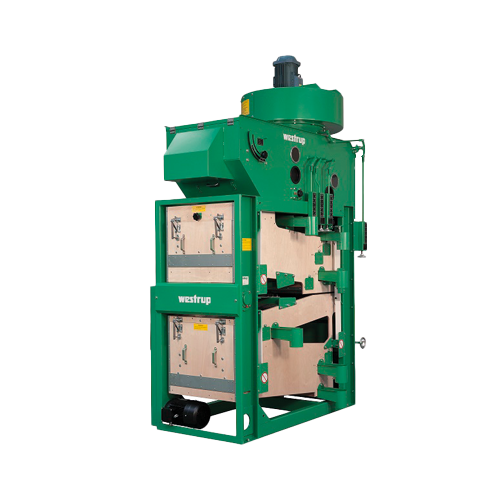

The GAU universal fine cleaner is suitable for cleaning and grading cereals and seeds. Capacity 1.2 t/h.
Models: GAU-600
The GSU fine cleaner is suitable for fine cleaning of small capacities of flower and vegetable seed as well as for seed and grain cleaning. Capacity 0.8 t/h.
Models: GSU-600

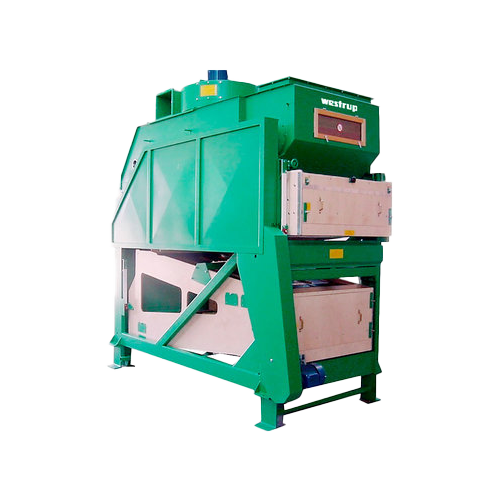

The FAU fine cleaner is first and foremost designed to be the main machine in seed and grain cleaning plants. Capacity 6-17 t/h.
Models: FAU-1000 | FAU-1250 | FAU-1500

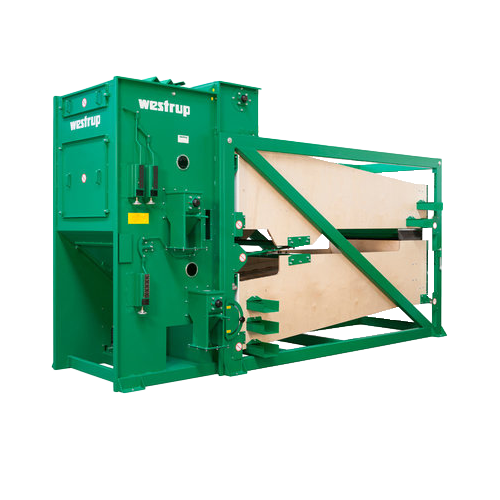

The AP high performance cleaner is designed for fine cleaning of cereals. Capacity 9-13 t/h.
Models: AP-1000 | AP-1250 | AP-1500
The UP mid-range modular cleaner is a very versatile cleaner applicable for many seed and grain cleaning purposes. Capacity 3-12 t/h.
Models: UP-1000 | UP–1250 | UP-1500 | UP-1750 | UP-2000
The HT spiral separators are used to separate round seeds from flat seeds by means of gravity. Capacity 0.1-0.8 t/h.
Models: HT-2 | HT-4 | HT-6 | HT-8

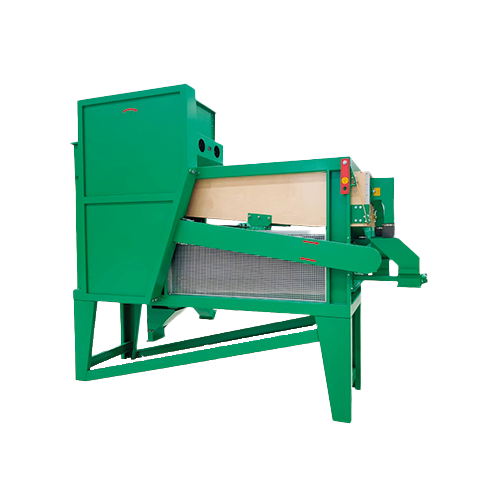

The S-600 seed grain cleaner is specially designed for use on larger farms or smaller cleaning plants where emphasis is placed on the quality of the prime product.. Capacity 2 t/h.
Models: S-600
Fine cleaning
-
Air screen fine cleaners remove light impurities by using a precise air stream to lift light foreign material away from the prime product and sieveboats with scalping and sand/sifting screens to remove small and large impurities.
We offer many versatile air screen fine cleaning machines suitable for many purposes, amongst these precision cleaning, fine cleaning, and sizing.
-
All the fine cleaners are working with a combination of screens and airflow.
Fine-cleaners always have a controlled flow of capacity, such as adjustable rpm on feed roll or vibrator feeder.
A combination of screens, depending on capacity, separates large and small impurities.
After, a combination of screens, depending on capacity and the chosen screen flow allows the machine to separate different fractions of material as desired.
Followed by a heavy after suction of the product.
-
A Fine cleaner is used when you aim for a purity of 95% or higher
A Fine cleaner is always the machine to be used before the product continues to Indented cylinder, gravity, color sorter or grader.
